rfx_rlgr.c File Reference

#include <freerdp/config.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <winpr/crt.h>
#include <winpr/print.h>
#include <winpr/sysinfo.h>
#include <winpr/bitstream.h>
#include <winpr/intrin.h>
#include "rfx_bitstream.h"
#include "rfx_rlgr.h"

Macros
#define	KPMAX   (80) /* max value for kp or krp */
#define	LSGR   (3) /* shift count to convert kp to k */
#define	UP_GR   (4) /* increase in kp after a zero run in RL mode */
#define	DN_GR   (6) /* decrease in kp after a nonzero symbol in RL mode */
#define	UQ_GR   (3) /* increase in kp after nonzero symbol in GR mode */
#define	DQ_GR   (3) /* decrease in kp after zero symbol in GR mode */
#define	GetMinBits(_val, _nbits)
#define	UpdateParam(_param, _deltaP, _k)
#define	GetNextInput(_n)
#define	OutputBits(numBits, bitPattern)   rfx_bitstream_put_bits(bs, bitPattern, numBits)
#define	OutputBit(count, bit)
#define	Get2MagSign(input)   ((input) >= 0 ? 2 * (input) : -2 * (input)-1)
#define	CodeGR(krp, val)   rfx_rlgr_code_gr(bs, krp, val)

Functions
static BOOL CALLBACK	rfx_rlgr_init (PINIT_ONCE once, PVOID param, PVOID *context)
static INLINE UINT32	lzcnt_s (UINT32 x)
int	rfx_rlgr_decode (RLGR_MODE mode, const BYTE *WINPR_RESTRICT pSrcData, UINT32 SrcSize, INT16 *WINPR_RESTRICT pDstData, UINT32 rDstSize)
static void	rfx_rlgr_code_gr (RFX_BITSTREAM *bs, int *krp, UINT32 val)
int	rfx_rlgr_encode (RLGR_MODE mode, const INT16 *WINPR_RESTRICT data, UINT32 data_size, BYTE *WINPR_RESTRICT buffer, UINT32 buffer_size)

Variables
static BOOL	g_LZCNT = FALSE
static INIT_ONCE	rfx_rlgr_init_once = INIT_ONCE_STATIC_INIT

Macro Definition Documentation

CodeGR

#define CodeGR	(		krp,
			val
	)		rfx_rlgr_code_gr(bs, krp, val)

DN_GR

#define DN_GR   (6) /* decrease in kp after a nonzero symbol in RL mode */

DQ_GR

#define DQ_GR   (3) /* decrease in kp after zero symbol in GR mode */

Get2MagSign

#define Get2MagSign

(

input

)

((input) >= 0 ? 2 * (input) : -2 * (input)-1)

GetMinBits

#define GetMinBits	(		_val,
			_nbits
	)

Value:

        do                           \
        {                            \
                UINT32 _v = (_val);      \
                (_nbits) = 0;            \
                while (_v)               \
                {                        \
                        _v >>= 1;            \
                        (_nbits)++;          \
                }                        \
        } while (0)

GetNextInput

#define GetNextInput

(

_n

)

Value:

        do                      \
        {                       \
                if (data_size > 0)  \
                {                   \
                        (_n) = *data++; \
                        data_size--;    \
                }                   \
                else                \
                {                   \
                        (_n) = 0;       \
                }                   \
        } while (0)

KPMAX

#define KPMAX   (80) /* max value for kp or krp */

FreeRDP: A Remote Desktop Protocol Implementation RemoteFX Codec Library - RLGR

Copyright 2011 Vic Lee

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. This implementation of RLGR refers to [MS-RDPRFX] 3.1.8.1.7.3 RLGR1/RLGR3 Pseudocode

LSGR

#define LSGR   (3) /* shift count to convert kp to k */

OutputBit

#define OutputBit	(		count,
			bit
	)

Value:

        do                                                           \
        {                                                            \
                UINT16 _b = ((bit) ? 0xFFFF : 0);                        \
                int _c = (count);                                        \
                for (; _c > 0; _c -= 16)                                 \
                        rfx_bitstream_put_bits(bs, _b, (_c > 16 ? 16 : _c)); \
        } while (0)

OutputBits

#define OutputBits	(		numBits,
			bitPattern
	)		rfx_bitstream_put_bits(bs, bitPattern, numBits)

UP_GR

#define UP_GR   (4) /* increase in kp after a zero run in RL mode */

UpdateParam

#define UpdateParam	(		_param,
			_deltaP,
			_k
	)

Value:

        do                                   \
        {                                    \
                (_param) += (_deltaP);           \
                if ((_param) > KPMAX)            \
                        (_param) = KPMAX;            \
                if ((_param) < 0)                \
                        (_param) = 0;                \
                (_k) = ((_param) >> LSGR);       \
        } while (0)

UQ_GR

#define UQ_GR   (3) /* increase in kp after nonzero symbol in GR mode */

Function Documentation

lzcnt_s()

static INLINE UINT32 lzcnt_s ( UINT32  x )

static

Here is the call graph for this function:

Here is the caller graph for this function:

rfx_rlgr_code_gr()

static void rfx_rlgr_code_gr ( RFX_BITSTREAM *  bs, int *  krp, UINT32  val  )

static

rfx_rlgr_decode()

int rfx_rlgr_decode	(	RLGR_MODE	mode,
		const BYTE *WINPR_RESTRICT	pSrcData,
		UINT32	SrcSize,
		INT16 *WINPR_RESTRICT	pDstData,
		UINT32	rDstSize
	)

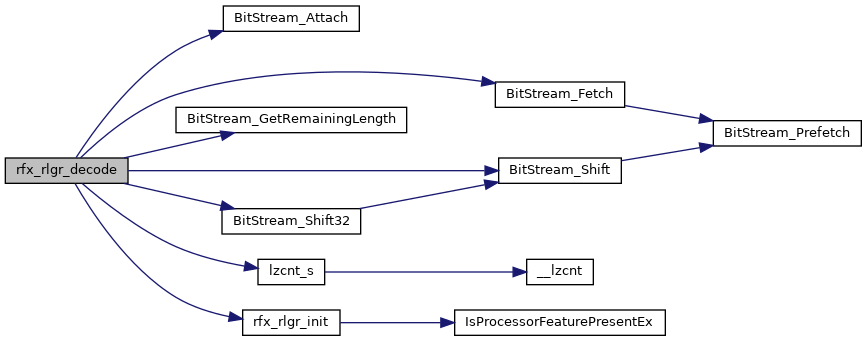

Here is the call graph for this function:

Here is the caller graph for this function:

rfx_rlgr_encode()

int rfx_rlgr_encode	(	RLGR_MODE	mode,
		const INT16 *WINPR_RESTRICT	data,
		UINT32	data_size,
		BYTE *WINPR_RESTRICT	buffer,
		UINT32	buffer_size
	)

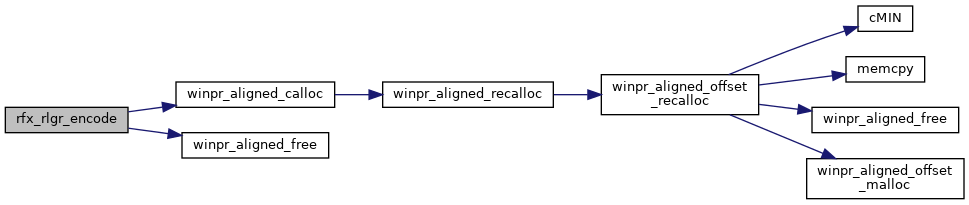

Here is the call graph for this function:

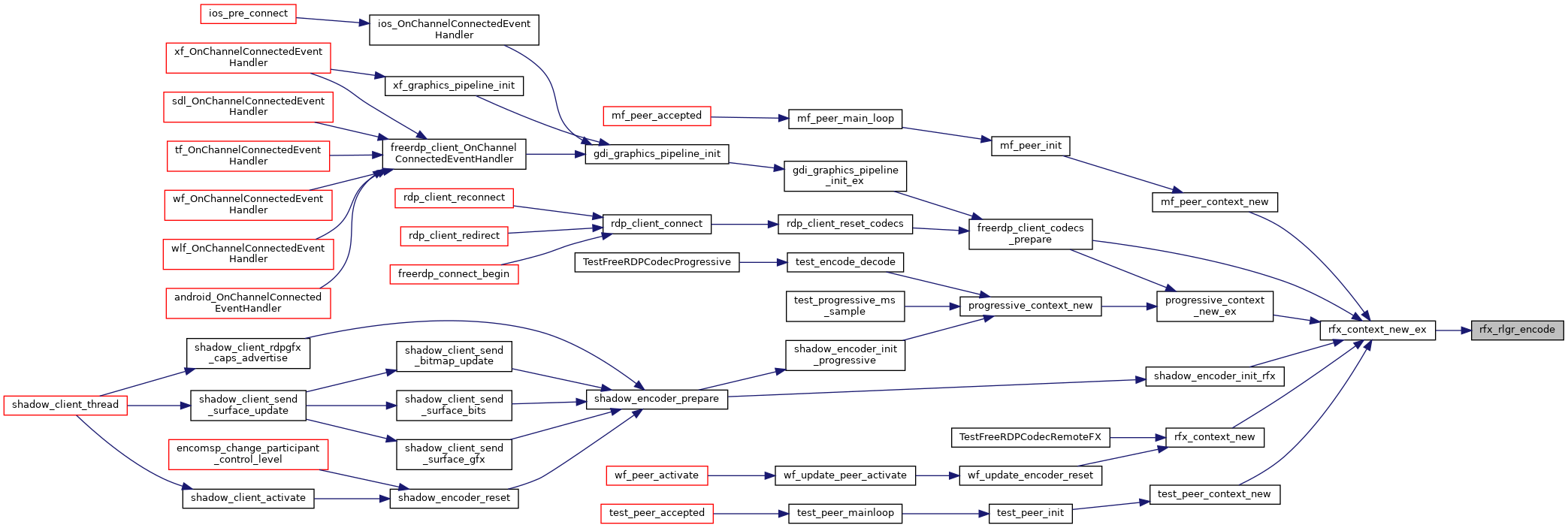

Here is the caller graph for this function:

rfx_rlgr_init()

static BOOL CALLBACK rfx_rlgr_init ( PINIT_ONCE  once, PVOID  param, PVOID *  context  )

static

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

g_LZCNT

BOOL g_LZCNT = FALSE

static

rfx_rlgr_init_once

INIT_ONCE rfx_rlgr_init_once = INIT_ONCE_STATIC_INIT

static
