FreeRDP
fastpath.h File Reference
#include "rdp.h"
#include <winpr/stream.h>
#include <freerdp/api.h>
This graph shows which files directly or indirectly include this file:

Data Structures

struct  FASTPATH_UPDATE_PDU_HEADER

struct  FASTPATH_UPDATE_HEADER


Macros

#define FASTPATH_MAX_PACKET_SIZE   0x3FFF

#define FASTPATH_FRAGMENT_SAFE_SIZE   0x3F80


Enumerations

enum  FASTPATH_INPUT_ACTION_TYPE { FASTPATH_INPUT_ACTION_FASTPATH = 0x0 , FASTPATH_INPUT_ACTION_X224 = 0x3 }

enum  FASTPATH_OUTPUT_ACTION_TYPE { FASTPATH_OUTPUT_ACTION_FASTPATH = 0x0 , FASTPATH_OUTPUT_ACTION_X224 = 0x3 }

enum  FASTPATH_UPDATETYPE {
  FASTPATH_UPDATETYPE_ORDERS = 0x0 , FASTPATH_UPDATETYPE_BITMAP = 0x1 , FASTPATH_UPDATETYPE_PALETTE = 0x2 , FASTPATH_UPDATETYPE_SYNCHRONIZE = 0x3 ,
  FASTPATH_UPDATETYPE_SURFCMDS = 0x4 , FASTPATH_UPDATETYPE_PTR_NULL = 0x5 , FASTPATH_UPDATETYPE_PTR_DEFAULT = 0x6 , FASTPATH_UPDATETYPE_PTR_POSITION = 0x8 ,
  FASTPATH_UPDATETYPE_COLOR = 0x9 , FASTPATH_UPDATETYPE_CACHED = 0xA , FASTPATH_UPDATETYPE_POINTER = 0xB , FASTPATH_UPDATETYPE_LARGE_POINTER = 0xC
}

enum  FASTPATH_FRAGMENT { FASTPATH_FRAGMENT_SINGLE = 0x0 , FASTPATH_FRAGMENT_LAST = 0x1 , FASTPATH_FRAGMENT_FIRST = 0x2 , FASTPATH_FRAGMENT_NEXT = 0x3 }

enum  FASTPATH_OUTPUT_COMPRESSION { FASTPATH_OUTPUT_COMPRESSION_USED = 0x2 }

enum  FASTPATH_INPUT_EVENT_CODE {
  FASTPATH_INPUT_EVENT_SCANCODE = 0x0 , FASTPATH_INPUT_EVENT_MOUSE = 0x1 , FASTPATH_INPUT_EVENT_MOUSEX = 0x2 , FASTPATH_INPUT_EVENT_SYNC = 0x3 ,
  FASTPATH_INPUT_EVENT_UNICODE = 0x4 , TS_FP_RELPOINTER_EVENT = 0x5 , TS_FP_QOETIMESTAMP_EVENT = 0x6
}

enum  FASTPATH_INPUT_KBDFLAGS { FASTPATH_INPUT_KBDFLAGS_RELEASE = 0x01 , FASTPATH_INPUT_KBDFLAGS_EXTENDED = 0x02 , FASTPATH_INPUT_KBDFLAGS_PREFIX_E1 = 0x04 }


Functions

FREERDP_LOCAL BOOL fastpath_read_header_rdp (rdpFastPath *fastpath, wStream *s, UINT16 *length)

FREERDP_LOCAL state_run_t fastpath_recv_updates (rdpFastPath *fastpath, wStream *s)

FREERDP_LOCAL state_run_t fastpath_recv_inputs (rdpFastPath *fastpath, wStream *s)

FREERDP_LOCAL BOOL fastpath_decrypt (rdpFastPath *fastpath, wStream *s, UINT16 *length)

FREERDP_LOCAL wStreamfastpath_input_pdu_init_header (rdpFastPath *fastpath)

FREERDP_LOCAL wStreamfastpath_input_pdu_init (rdpFastPath *fastpath, BYTE eventFlags, BYTE eventCode)

FREERDP_LOCAL BOOL fastpath_send_multiple_input_pdu (rdpFastPath *fastpath, wStream *s, size_t iEventCount)

FREERDP_LOCAL BOOL fastpath_send_input_pdu (rdpFastPath *fastpath, wStream *s)

FREERDP_LOCAL wStreamfastpath_update_pdu_init (rdpFastPath *fastpath)

FREERDP_LOCAL wStreamfastpath_update_pdu_init_new (rdpFastPath *fastpath)

FREERDP_LOCAL BOOL fastpath_send_update_pdu (rdpFastPath *fastpath, BYTE updateCode, wStream *s, BOOL skipCompression)

FREERDP_LOCAL BOOL fastpath_send_surfcmd_frame_marker (rdpFastPath *fastpath, UINT16 frameAction, UINT32 frameId)

FREERDP_LOCAL BYTE fastpath_get_encryption_flags (rdpFastPath *fastpath)

FREERDP_LOCAL rdpFastPath * fastpath_new (rdpRdp *rdp)

FREERDP_LOCAL void fastpath_free (rdpFastPath *fastpath)


Macro Definition Documentation

◆ FASTPATH_FRAGMENT_SAFE_SIZE

#define FASTPATH_FRAGMENT_SAFE_SIZE   0x3F80

◆ FASTPATH_MAX_PACKET_SIZE

#define FASTPATH_MAX_PACKET_SIZE   0x3FFF

FreeRDP: A Remote Desktop Protocol Implementation Fast Path

Copyright 2011 Vic Lee

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Enumeration Type Documentation

◆ FASTPATH_FRAGMENT

Enumerator
FASTPATH_FRAGMENT_SINGLE
FASTPATH_FRAGMENT_LAST
FASTPATH_FRAGMENT_FIRST
FASTPATH_FRAGMENT_NEXT

◆ FASTPATH_INPUT_ACTION_TYPE

Enumerator
FASTPATH_INPUT_ACTION_FASTPATH
FASTPATH_INPUT_ACTION_X224

◆ FASTPATH_INPUT_EVENT_CODE

Enumerator
FASTPATH_INPUT_EVENT_SCANCODE
FASTPATH_INPUT_EVENT_MOUSE
FASTPATH_INPUT_EVENT_MOUSEX
FASTPATH_INPUT_EVENT_SYNC
FASTPATH_INPUT_EVENT_UNICODE
TS_FP_RELPOINTER_EVENT
TS_FP_QOETIMESTAMP_EVENT

◆ FASTPATH_INPUT_KBDFLAGS

Enumerator
FASTPATH_INPUT_KBDFLAGS_RELEASE
FASTPATH_INPUT_KBDFLAGS_EXTENDED
FASTPATH_INPUT_KBDFLAGS_PREFIX_E1

◆ FASTPATH_OUTPUT_ACTION_TYPE

Enumerator
FASTPATH_OUTPUT_ACTION_FASTPATH
FASTPATH_OUTPUT_ACTION_X224

◆ FASTPATH_OUTPUT_COMPRESSION

Enumerator
FASTPATH_OUTPUT_COMPRESSION_USED

◆ FASTPATH_UPDATETYPE

Enumerator
FASTPATH_UPDATETYPE_ORDERS
FASTPATH_UPDATETYPE_BITMAP
FASTPATH_UPDATETYPE_PALETTE
FASTPATH_UPDATETYPE_SYNCHRONIZE
FASTPATH_UPDATETYPE_SURFCMDS
FASTPATH_UPDATETYPE_PTR_NULL
FASTPATH_UPDATETYPE_PTR_DEFAULT
FASTPATH_UPDATETYPE_PTR_POSITION
FASTPATH_UPDATETYPE_COLOR
FASTPATH_UPDATETYPE_CACHED
FASTPATH_UPDATETYPE_POINTER
FASTPATH_UPDATETYPE_LARGE_POINTER

Function Documentation

◆ fastpath_decrypt()

FREERDP_LOCAL BOOL fastpath_decrypt ( rdpFastPath *  fastpath,
wStream s,
UINT16 length
)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_free()

FREERDP_LOCAL void fastpath_free ( rdpFastPath *  fastpath)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_get_encryption_flags()

FREERDP_LOCAL BYTE fastpath_get_encryption_flags ( rdpFastPath *  fastpath)
Here is the caller graph for this function:

◆ fastpath_input_pdu_init()

FREERDP_LOCAL wStream* fastpath_input_pdu_init ( rdpFastPath *  fastpath,
BYTE  eventFlags,
BYTE  eventCode
)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_input_pdu_init_header()

FREERDP_LOCAL wStream* fastpath_input_pdu_init_header ( rdpFastPath *  fastpath)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_new()

FREERDP_LOCAL rdpFastPath* fastpath_new ( rdpRdp *  rdp)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_read_header_rdp()

FREERDP_LOCAL BOOL fastpath_read_header_rdp ( rdpFastPath *  fastpath,
wStream s,
UINT16 length
)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_recv_inputs()

FREERDP_LOCAL state_run_t fastpath_recv_inputs ( rdpFastPath *  fastpath,
wStream s
)

If numberEvents is not provided in fpInputHeader, it will be provided as one additional byte here.

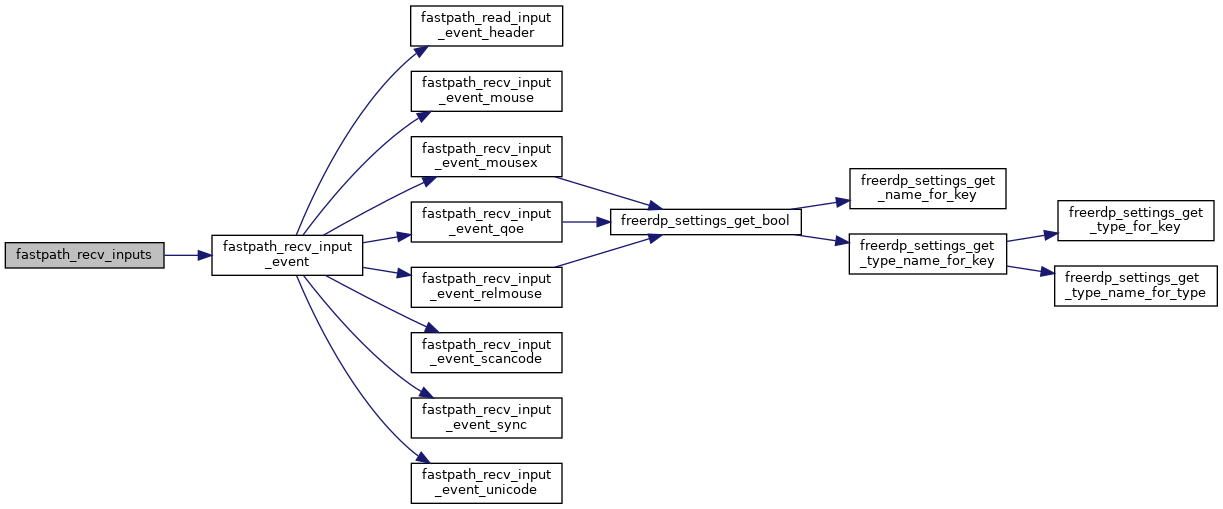

Here is the call graph for this function:

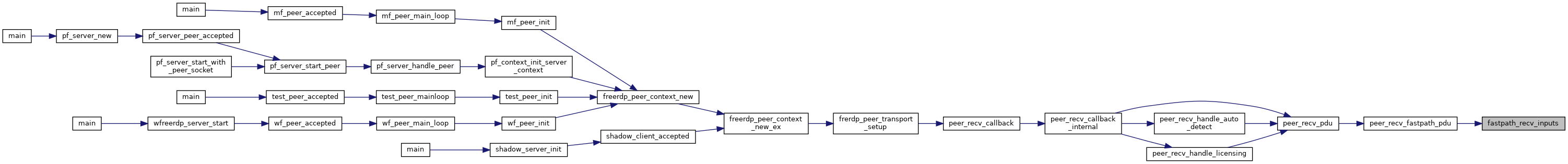

Here is the caller graph for this function:

◆ fastpath_recv_updates()

FREERDP_LOCAL state_run_t fastpath_recv_updates ( rdpFastPath *  fastpath,
wStream s
)

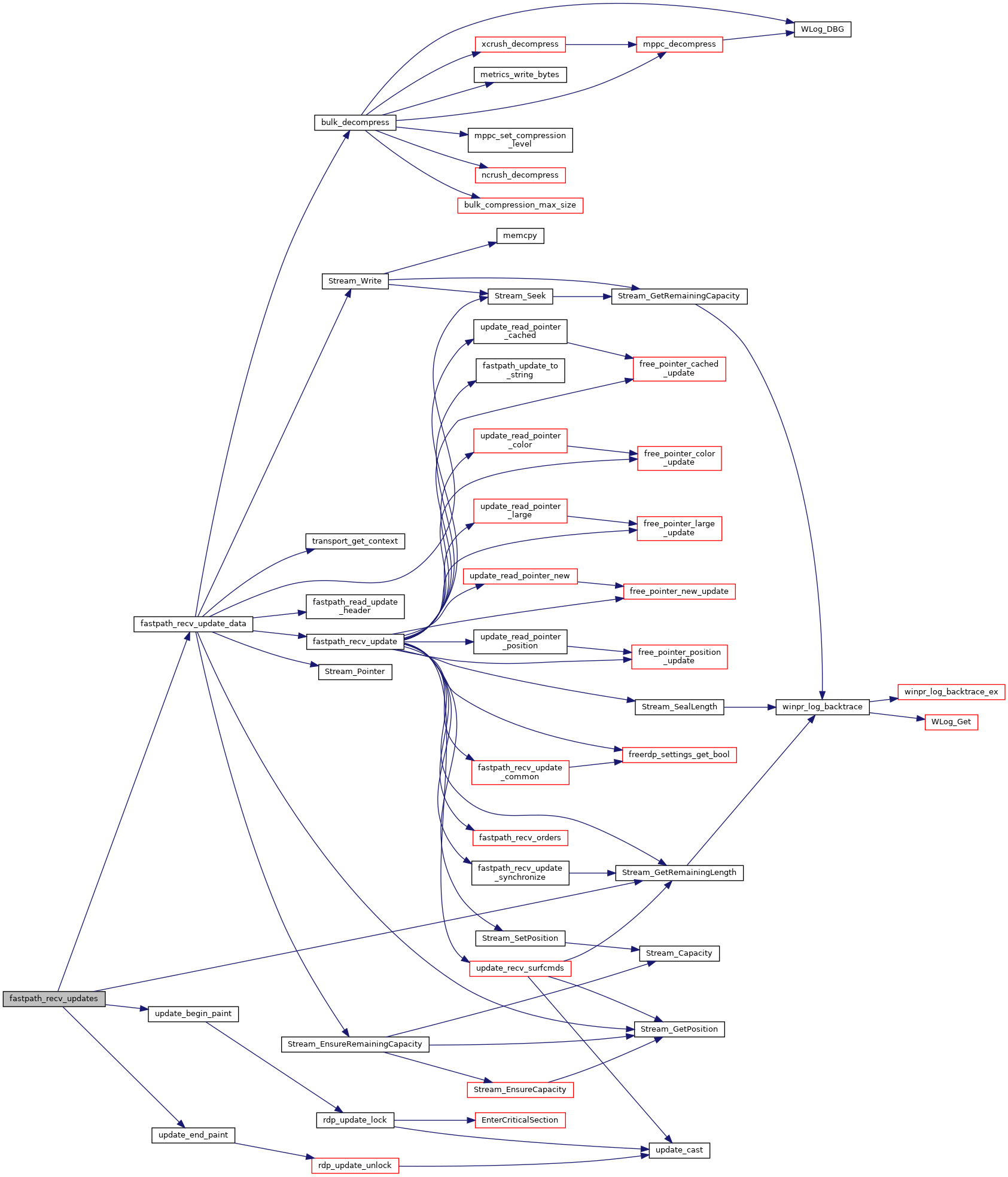

Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_send_input_pdu()

FREERDP_LOCAL BOOL fastpath_send_input_pdu ( rdpFastPath *  fastpath,
wStream s
)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_send_multiple_input_pdu()

FREERDP_LOCAL BOOL fastpath_send_multiple_input_pdu ( rdpFastPath *  fastpath,
wStream s,
size_t  iEventCount
)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_send_surfcmd_frame_marker()

FREERDP_LOCAL BOOL fastpath_send_surfcmd_frame_marker ( rdpFastPath *  fastpath,
UINT16  frameAction,
UINT32  frameId
)

◆ fastpath_send_update_pdu()

FREERDP_LOCAL BOOL fastpath_send_update_pdu ( rdpFastPath *  fastpath,
BYTE  updateCode,
wStream s,
BOOL  skipCompression
)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_update_pdu_init()

FREERDP_LOCAL wStream* fastpath_update_pdu_init ( rdpFastPath *  fastpath)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fastpath_update_pdu_init_new()

FREERDP_LOCAL wStream* fastpath_update_pdu_init_new ( rdpFastPath *  fastpath)
Here is the call graph for this function:
Here is the caller graph for this function:
