com.freerdp.freerdpcore.presentation.SessionInputManager Class Reference

Inheritance diagram for com.freerdp.freerdpcore.presentation.SessionInputManager:

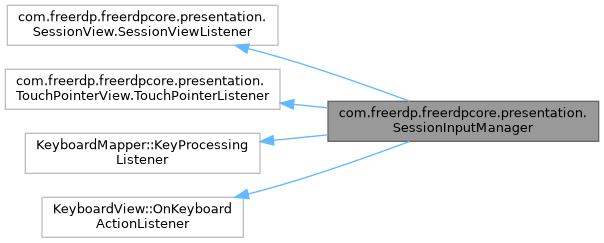

Collaboration diagram for com.freerdp.freerdpcore.presentation.SessionInputManager:

Public Member Functions
	SessionInputManager (Context context, ScrollView2D scrollView, SessionView sessionView, TouchPointerView touchPointerView, KeyboardView keyboardView, KeyboardView modifiersKeyboardView)
void	attachSession (long instance, Bitmap surface)
void	setBitmap (Bitmap bitmap)
ScaleGestureDetector.OnScaleGestureListener	getPinchZoomListener ()
void	setScreenSize (int width, int height)
void	reloadKeyboards ()
void	toggleSystemKeyboard ()
void	toggleExtendedKeyboard ()
void	hideKeyboards ()
boolean	isAnyKeyboardVisible ()
void	cancelPendingEvents ()
boolean	onGenericMotionEvent (MotionEvent e)
boolean	onAndroidKeyEvent (KeyEvent event)
boolean	onAndroidKeyLongPress (int keyCode)
boolean	handleBackAsAltF4 ()
void	toggleTouchPointer ()
void	onSessionViewBeginTouch ()
void	onSessionViewEndTouch ()
void	onSessionViewLeftTouch (int x, int y, boolean down)
void	onSessionViewMiddleTouch (int x, int y, boolean down)
void	onSessionViewRightTouch (int x, int y, boolean down)
void	onSessionViewMove (int x, int y)
void	onSessionViewMouseMove (int x, int y)
void	onSessionViewScroll (boolean down)
void	onSessionViewHScroll (boolean right)
void	onTouchPointerClose ()
void	onTouchPointerLeftClick (int x, int y, boolean down)
void	onTouchPointerRightClick (int x, int y, boolean down)
void	onTouchPointerMove (int x, int y)
void	onTouchPointerScroll (boolean down)
void	onTouchPointerToggleKeyboard ()
void	onTouchPointerToggleExtKeyboard ()
void	onTouchPointerResetScrollZoom ()
void	processVirtualKey (int virtualKeyCode, boolean down)
void	processUnicodeKey (int unicodeKey)
void	switchKeyboard (int keyboardType)
void	modifiersChanged ()
void	onKey (int primaryCode, int[] keyCodes)
void	onText (CharSequence text)
void	swipeRight ()
void	swipeLeft ()
void	swipeDown ()
void	swipeUp ()
void	onPress (int primaryCode)
void	onRelease (int primaryCode)

Detailed Description

Definition at line 30 of file SessionInputManager.java.

Constructor & Destructor Documentation

SessionInputManager()

com.freerdp.freerdpcore.presentation.SessionInputManager.SessionInputManager ( Context  context, ScrollView2D  scrollView, SessionView  sessionView, TouchPointerView  touchPointerView, KeyboardView  keyboardView, KeyboardView  modifiersKeyboardView  )

inline

Definition at line 71 of file SessionInputManager.java.

  {
    this.context = context;
    this.scrollView = scrollView;
    this.sessionView = sessionView;
    this.touchPointerView = touchPointerView;
    this.keyboardView = keyboardView;
    this.modifiersKeyboardView = modifiersKeyboardView;
    this.handler = new InputHandler();

    this.keyboardMapper = new KeyboardMapper();
    this.keyboardMapper.init(context);

    loadKeyboards();
    keyboardView.setKeyboard(specialkeysKeyboard);
    modifiersKeyboardView.setKeyboard(modifiersKeyboard);

    keyboardView.setOnKeyboardActionListener(this);
    modifiersKeyboardView.setOnKeyboardActionListener(this);
  }

Member Function Documentation

attachSession()

void com.freerdp.freerdpcore.presentation.SessionInputManager.attachSession ( long  instance, Bitmap  surface  )

inline

Definition at line 104 of file SessionInputManager.java.

  {
    this.instance = instance;
    this.bitmap = surface;
    keyboardMapper.reset(this);
  }

cancelPendingEvents()

void com.freerdp.freerdpcore.presentation.SessionInputManager.cancelPendingEvents ( )

inline

Definition at line 218 of file SessionInputManager.java.

  {
    handler.removeMessages(MSG_SEND_MOVE_EVENT);
  }

getPinchZoomListener()

ScaleGestureDetector.OnScaleGestureListener com.freerdp.freerdpcore.presentation.SessionInputManager.getPinchZoomListener ( )

inline

Definition at line 118 of file SessionInputManager.java.

  {
    return pinchZoomListener;
  }

handleBackAsAltF4()

boolean com.freerdp.freerdpcore.presentation.SessionInputManager.handleBackAsAltF4 ( )

inline

Definition at line 262 of file SessionInputManager.java.

  {
    if (instance == 0)
      return false;
    if (!ApplicationSettingsActivity.getUseBackAsAltf4(context))
      return false;
    keyboardMapper.sendAltF4();
    return true;
  }

hideKeyboards()

void com.freerdp.freerdpcore.presentation.SessionInputManager.hideKeyboards ( )

inline

Definition at line 152 of file SessionInputManager.java.

  {
    showKeyboard(false, false);
  }

isAnyKeyboardVisible()

boolean com.freerdp.freerdpcore.presentation.SessionInputManager.isAnyKeyboardVisible ( )

inline

Definition at line 158 of file SessionInputManager.java.

  {
    return sysKeyboardVisible || extKeyboardVisible;
  }

modifiersChanged()

void com.freerdp.freerdpcore.presentation.SessionInputManager.modifiersChanged ( )

inline

Definition at line 522 of file SessionInputManager.java.

  {
    updateModifierKeyStates();
  }

onAndroidKeyEvent()

boolean com.freerdp.freerdpcore.presentation.SessionInputManager.onAndroidKeyEvent ( KeyEvent  event )

inline

Definition at line 240 of file SessionInputManager.java.

  {
    if (instance == 0)
      return false;
    return keyboardMapper.processAndroidKeyEvent(event);
  }

onAndroidKeyLongPress()

boolean com.freerdp.freerdpcore.presentation.SessionInputManager.onAndroidKeyLongPress ( int  keyCode )

inline

Definition at line 249 of file SessionInputManager.java.

  {
    if (instance == 0)
      return false;
    if (keyCode == KeyEvent.KEYCODE_BACK)
    {
      LibFreeRDP.disconnect(instance);
      return true;
    }
    return false;
  }

onGenericMotionEvent()

boolean com.freerdp.freerdpcore.presentation.SessionInputManager.onGenericMotionEvent ( MotionEvent  e )

inline

Definition at line 224 of file SessionInputManager.java.

  {
    if (instance == 0)
      return false;
    if (e.getAction() != MotionEvent.ACTION_SCROLL)
      return false;

    final float vScroll = e.getAxisValue(MotionEvent.AXIS_VSCROLL);
    if (vScroll < 0)
      LibFreeRDP.sendCursorEvent(instance, 0, 0, Mouse.getScrollEvent(context, false));
    else if (vScroll > 0)
      LibFreeRDP.sendCursorEvent(instance, 0, 0, Mouse.getScrollEvent(context, true));
    return true;
  }

onKey()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onKey ( int  primaryCode, int[]  keyCodes  )

inline

Definition at line 530 of file SessionInputManager.java.

  {
    keyboardMapper.processCustomKeyEvent(primaryCode);
  }

onPress()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onPress ( int  primaryCode )

inline

Definition at line 555 of file SessionInputManager.java.

  {
  }

onRelease()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onRelease ( int  primaryCode )

inline

Definition at line 559 of file SessionInputManager.java.

  {
  }

onSessionViewBeginTouch()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewBeginTouch ( )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 359 of file SessionInputManager.java.

  {
    scrollView.setScrollEnabled(false);
  }

onSessionViewEndTouch()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewEndTouch ( )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 364 of file SessionInputManager.java.

  {
    scrollView.setScrollEnabled(true);
  }

onSessionViewHScroll()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewHScroll ( boolean  right )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 413 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    LibFreeRDP.sendCursorEvent(instance, 0, 0, Mouse.getHScrollEvent(context, right));
  }

onSessionViewLeftTouch()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewLeftTouch ( int  x, int  y, boolean  down  )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 369 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    if (!down)
      cancelDelayedMoveEvent();
    LibFreeRDP.sendCursorEvent(instance, x, y, Mouse.getLeftButtonEvent(context, down));
  }

onSessionViewMiddleTouch()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewMiddleTouch ( int  x, int  y, boolean  down  )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 378 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    LibFreeRDP.sendCursorEvent(instance, x, y, Mouse.getMiddleButtonEvent(down));
  }

onSessionViewMouseMove()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewMouseMove ( int  x, int  y  )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 399 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    LibFreeRDP.sendCursorEvent(instance, x, y, Mouse.getMoveEvent());
  }

onSessionViewMove()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewMove ( int  x, int  y  )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 392 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    sendDelayedMoveEvent(x, y);
  }

onSessionViewRightTouch()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewRightTouch ( int  x, int  y, boolean  down  )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 385 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    LibFreeRDP.sendCursorEvent(instance, x, y, Mouse.getRightButtonEvent(context, down));
  }

onSessionViewScroll()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onSessionViewScroll ( boolean  down )

inline

Implements com.freerdp.freerdpcore.presentation.SessionView.SessionViewListener.

Definition at line 406 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    LibFreeRDP.sendCursorEvent(instance, 0, 0, Mouse.getScrollEvent(context, down));
  }

onText()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onText ( CharSequence  text )

inline

Definition at line 535 of file SessionInputManager.java.

  {
  }

onTouchPointerClose()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onTouchPointerClose ( )

inline

Implements com.freerdp.freerdpcore.presentation.TouchPointerView.TouchPointerListener.

Definition at line 423 of file SessionInputManager.java.

  {
    touchPointerView.setVisibility(View.INVISIBLE);
    sessionView.setTouchPointerPadding(0, 0);
  }

onTouchPointerLeftClick()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onTouchPointerLeftClick ( int  x, int  y, boolean  down  )

inline

Implements com.freerdp.freerdpcore.presentation.TouchPointerView.TouchPointerListener.

Definition at line 429 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    Point p = mapScreenCoordToSessionCoord(x, y);
    LibFreeRDP.sendCursorEvent(instance, p.x, p.y, Mouse.getLeftButtonEvent(context, down));
  }

onTouchPointerMove()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onTouchPointerMove ( int  x, int  y  )

inline

Implements com.freerdp.freerdpcore.presentation.TouchPointerView.TouchPointerListener.

Definition at line 445 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    Point p = mapScreenCoordToSessionCoord(x, y);
    LibFreeRDP.sendCursorEvent(instance, p.x, p.y, Mouse.getMoveEvent());

    if (ApplicationSettingsActivity.getAutoScrollTouchPointer(context) &&
        !handler.hasMessages(MSG_SCROLLING_REQUESTED))
    {
      Log.v(TAG, "Starting auto-scroll");
      handler.sendEmptyMessageDelayed(MSG_SCROLLING_REQUESTED, SCROLLING_TIMEOUT);
    }
  }

onTouchPointerResetScrollZoom()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onTouchPointerResetScrollZoom ( )

inline

Implements com.freerdp.freerdpcore.presentation.TouchPointerView.TouchPointerListener.

Definition at line 477 of file SessionInputManager.java.

  {
    sessionView.setZoom(1.0f);
    scrollView.scrollTo(0, 0);
  }

onTouchPointerRightClick()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onTouchPointerRightClick ( int  x, int  y, boolean  down  )

inline

Implements com.freerdp.freerdpcore.presentation.TouchPointerView.TouchPointerListener.

Definition at line 437 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    Point p = mapScreenCoordToSessionCoord(x, y);
    LibFreeRDP.sendCursorEvent(instance, p.x, p.y, Mouse.getRightButtonEvent(context, down));
  }

onTouchPointerScroll()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onTouchPointerScroll ( boolean  down )

inline

Implements com.freerdp.freerdpcore.presentation.TouchPointerView.TouchPointerListener.

Definition at line 460 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    LibFreeRDP.sendCursorEvent(instance, 0, 0, Mouse.getScrollEvent(context, down));
  }

onTouchPointerToggleExtKeyboard()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onTouchPointerToggleExtKeyboard ( )

inline

Implements com.freerdp.freerdpcore.presentation.TouchPointerView.TouchPointerListener.

Definition at line 472 of file SessionInputManager.java.

  {
    toggleExtendedKeyboard();
  }

onTouchPointerToggleKeyboard()

void com.freerdp.freerdpcore.presentation.SessionInputManager.onTouchPointerToggleKeyboard ( )

inline

Implements com.freerdp.freerdpcore.presentation.TouchPointerView.TouchPointerListener.

Definition at line 467 of file SessionInputManager.java.

  {
    toggleSystemKeyboard();
  }

processUnicodeKey()

void com.freerdp.freerdpcore.presentation.SessionInputManager.processUnicodeKey ( int  unicodeKey )

inline

Definition at line 493 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    LibFreeRDP.sendUnicodeKeyEvent(instance, unicodeKey, true);
    LibFreeRDP.sendUnicodeKeyEvent(instance, unicodeKey, false);
  }

processVirtualKey()

void com.freerdp.freerdpcore.presentation.SessionInputManager.processVirtualKey ( int  virtualKeyCode, boolean  down  )

inline

Definition at line 486 of file SessionInputManager.java.

  {
    if (instance == 0)
      return;
    LibFreeRDP.sendKeyEvent(instance, virtualKeyCode, down);
  }

reloadKeyboards()

void com.freerdp.freerdpcore.presentation.SessionInputManager.reloadKeyboards ( )

inline

Definition at line 132 of file SessionInputManager.java.

  {
    loadKeyboards();
    keyboardView.setKeyboard(specialkeysKeyboard);
    modifiersKeyboardView.setKeyboard(modifiersKeyboard);
  }

setBitmap()

void com.freerdp.freerdpcore.presentation.SessionInputManager.setBitmap ( Bitmap  bitmap )

inline

Definition at line 112 of file SessionInputManager.java.

  {
    this.bitmap = bitmap;
  }

setScreenSize()

void com.freerdp.freerdpcore.presentation.SessionInputManager.setScreenSize ( int  width, int  height  )

inline

Definition at line 124 of file SessionInputManager.java.

  {
    this.screenWidth = width;
    this.screenHeight = height;
  }

swipeDown()

void com.freerdp.freerdpcore.presentation.SessionInputManager.swipeDown ( )

inline

Definition at line 547 of file SessionInputManager.java.

  {
  }

swipeLeft()

void com.freerdp.freerdpcore.presentation.SessionInputManager.swipeLeft ( )

inline

Definition at line 543 of file SessionInputManager.java.

  {
  }

swipeRight()

void com.freerdp.freerdpcore.presentation.SessionInputManager.swipeRight ( )

inline

Definition at line 539 of file SessionInputManager.java.

  {
  }

swipeUp()

void com.freerdp.freerdpcore.presentation.SessionInputManager.swipeUp ( )

inline

Definition at line 551 of file SessionInputManager.java.

  {
  }

switchKeyboard()

void com.freerdp.freerdpcore.presentation.SessionInputManager.switchKeyboard ( int  keyboardType )

inline

Definition at line 501 of file SessionInputManager.java.

  {
    switch (keyboardType)
    {
      case KeyboardMapper.KEYBOARD_TYPE_FUNCTIONKEYS:
        keyboardView.setKeyboard(specialkeysKeyboard);
        break;

      case KeyboardMapper.KEYBOARD_TYPE_NUMPAD:
        keyboardView.setKeyboard(numpadKeyboard);
        break;

      case KeyboardMapper.KEYBOARD_TYPE_CURSOR:
        keyboardView.setKeyboard(cursorKeyboard);
        break;

      default:
        break;
    }
  }

toggleExtendedKeyboard()

void com.freerdp.freerdpcore.presentation.SessionInputManager.toggleExtendedKeyboard ( )

inline

Definition at line 146 of file SessionInputManager.java.

  {
    showKeyboard(false, !extKeyboardVisible);
  }

toggleSystemKeyboard()

void com.freerdp.freerdpcore.presentation.SessionInputManager.toggleSystemKeyboard ( )

inline

Definition at line 140 of file SessionInputManager.java.

  {
    showKeyboard(!sysKeyboardVisible, false);
  }

toggleTouchPointer()

void com.freerdp.freerdpcore.presentation.SessionInputManager.toggleTouchPointer ( )

inline

Definition at line 273 of file SessionInputManager.java.

  {
    if (touchPointerView.getVisibility() == View.VISIBLE)
    {
      touchPointerView.setVisibility(View.INVISIBLE);
      sessionView.setTouchPointerPadding(0, 0);
    }
    else
    {
      touchPointerView.setVisibility(View.VISIBLE);
      sessionView.setTouchPointerPadding(touchPointerView.getPointerWidth(),
                                         touchPointerView.getPointerHeight());
    }
  }

---

The documentation for this class was generated from the following file:

• SessionInputManager.java
