client/X11/xfreerdp.h File Reference

#include <freerdp/api.h>
#include "xf_window.h"
#include "xf_monitor.h"
#include "xf_channels.h"
#include <freerdp/gdi/gdi.h>
#include <freerdp/codec/rfx.h>
#include <freerdp/codec/nsc.h>
#include <freerdp/codec/clear.h>
#include <freerdp/codec/color.h>
#include <freerdp/codec/bitmap.h>
#include <freerdp/codec/h264.h>
#include <freerdp/codec/progressive.h>
#include <freerdp/codec/region.h>

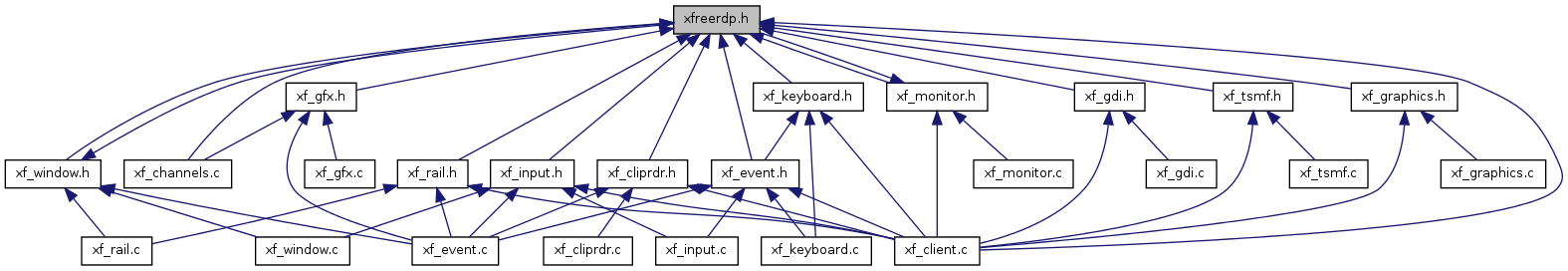

This graph shows which files directly or indirectly include this file:

Data Structures
struct	xfWorkArea
struct	xfPointer
struct	xfBitmap
struct	xfGlyph
struct	xfContext
Enumerations
enum	XF_EXIT_CODE {   XF_EXIT_SUCCESS = 0, XF_EXIT_DISCONNECT = 1, XF_EXIT_LOGOFF = 2, XF_EXIT_IDLE_TIMEOUT = 3,   XF_EXIT_LOGON_TIMEOUT = 4, XF_EXIT_CONN_REPLACED = 5, XF_EXIT_OUT_OF_MEMORY = 6, XF_EXIT_CONN_DENIED = 7,   XF_EXIT_CONN_DENIED_FIPS = 8, XF_EXIT_USER_PRIVILEGES = 9, XF_EXIT_FRESH_CREDENTIALS_REQUIRED = 10, XF_EXIT_DISCONNECT_BY_USER = 11,   XF_EXIT_LICENSE_INTERNAL = 16, XF_EXIT_LICENSE_NO_LICENSE_SERVER = 17, XF_EXIT_LICENSE_NO_LICENSE = 18, XF_EXIT_LICENSE_BAD_CLIENT_MSG = 19,   XF_EXIT_LICENSE_HWID_DOESNT_MATCH = 20, XF_EXIT_LICENSE_BAD_CLIENT = 21, XF_EXIT_LICENSE_CANT_FINISH_PROTOCOL = 22, XF_EXIT_LICENSE_CLIENT_ENDED_PROTOCOL = 23,   XF_EXIT_LICENSE_BAD_CLIENT_ENCRYPTION = 24, XF_EXIT_LICENSE_CANT_UPGRADE = 25, XF_EXIT_LICENSE_NO_REMOTE_CONNECTIONS = 26, XF_EXIT_RDP = 32,   XF_EXIT_PARSE_ARGUMENTS = 128, XF_EXIT_MEMORY = 129, XF_EXIT_PROTOCOL = 130, XF_EXIT_CONN_FAILED = 131,   XF_EXIT_UNKNOWN = 255 }
Functions
void	xf_create_window (xfContext *xfc)
void	xf_toggle_fullscreen (xfContext *xfc)
void	xf_toggle_control (xfContext *xfc)
BOOL	xf_post_connect (freerdp *instance)
void	xf_encomsp_init (xfContext *xfc, EncomspClientContext *encomsp)
void	xf_encomsp_uninit (xfContext *xfc, EncomspClientContext *encomsp)
void	xf_lock_x11 (xfContext *xfc, BOOL display)
void	xf_unlock_x11 (xfContext *xfc, BOOL display)
void	xf_draw_screen_scaled (xfContext *xfc, int x, int y, int w, int h, BOOL scale)
void	xf_transform_window (xfContext *xfc)
FREERDP_API DWORD	xf_exit_code_from_disconnect_reason (DWORD reason)

---

Enumeration Type Documentation

enum XF_EXIT_CODE

Enumerator:

XF_EXIT_SUCCESS
XF_EXIT_DISCONNECT
XF_EXIT_LOGOFF
XF_EXIT_IDLE_TIMEOUT
XF_EXIT_LOGON_TIMEOUT
XF_EXIT_CONN_REPLACED
XF_EXIT_OUT_OF_MEMORY
XF_EXIT_CONN_DENIED
XF_EXIT_CONN_DENIED_FIPS
XF_EXIT_USER_PRIVILEGES
XF_EXIT_FRESH_CREDENTIALS_REQUIRED
XF_EXIT_DISCONNECT_BY_USER
XF_EXIT_LICENSE_INTERNAL
XF_EXIT_LICENSE_NO_LICENSE_SERVER
XF_EXIT_LICENSE_NO_LICENSE
XF_EXIT_LICENSE_BAD_CLIENT_MSG
XF_EXIT_LICENSE_HWID_DOESNT_MATCH
XF_EXIT_LICENSE_BAD_CLIENT
XF_EXIT_LICENSE_CANT_FINISH_PROTOCOL
XF_EXIT_LICENSE_CLIENT_ENDED_PROTOCOL
XF_EXIT_LICENSE_BAD_CLIENT_ENCRYPTION
XF_EXIT_LICENSE_CANT_UPGRADE
XF_EXIT_LICENSE_NO_REMOTE_CONNECTIONS
XF_EXIT_RDP
XF_EXIT_PARSE_ARGUMENTS
XF_EXIT_MEMORY
XF_EXIT_PROTOCOL
XF_EXIT_CONN_FAILED
XF_EXIT_UNKNOWN

---

Function Documentation

void xf_create_window

(

xfContext *

xfc

)

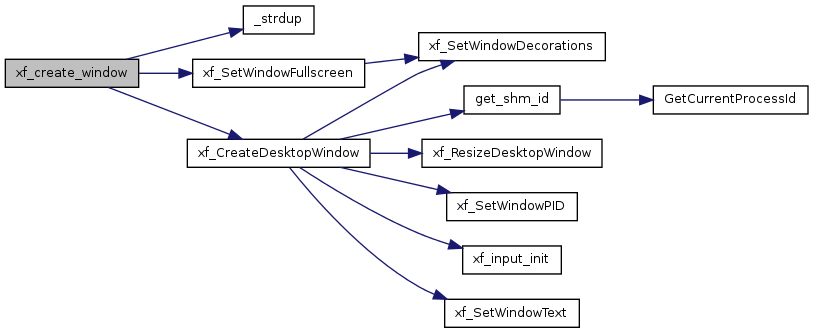

Here is the call graph for this function:

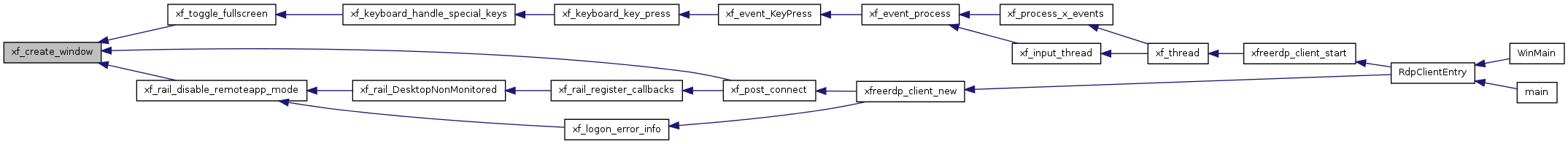

Here is the caller graph for this function:

void xf_draw_screen_scaled	(	xfContext *	xfc,
		int	x,
		int	y,
		int	w,
		int	h,
		BOOL	scale
	)

Here is the caller graph for this function:

void xf_encomsp_init	(	xfContext *	xfc,
		EncomspClientContext *	encomsp
	)

Here is the call graph for this function:

Here is the caller graph for this function:

void xf_encomsp_uninit	(	xfContext *	xfc,
		EncomspClientContext *	encomsp
	)

Here is the caller graph for this function:

FREERDP_API DWORD xf_exit_code_from_disconnect_reason

(

DWORD

reason

)

Here is the caller graph for this function:

void xf_lock_x11	(	xfContext *	xfc,
		BOOL	display
	)

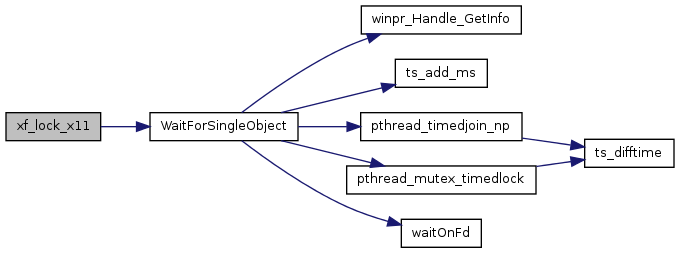

Here is the call graph for this function:

Here is the caller graph for this function:

BOOL xf_post_connect

(

freerdp *

instance

)

Callback given to freerdp_connect() to perform post-connection operations. It will be called only if the connection was initialized properly, and will continue the initialization based on the newly created connection.

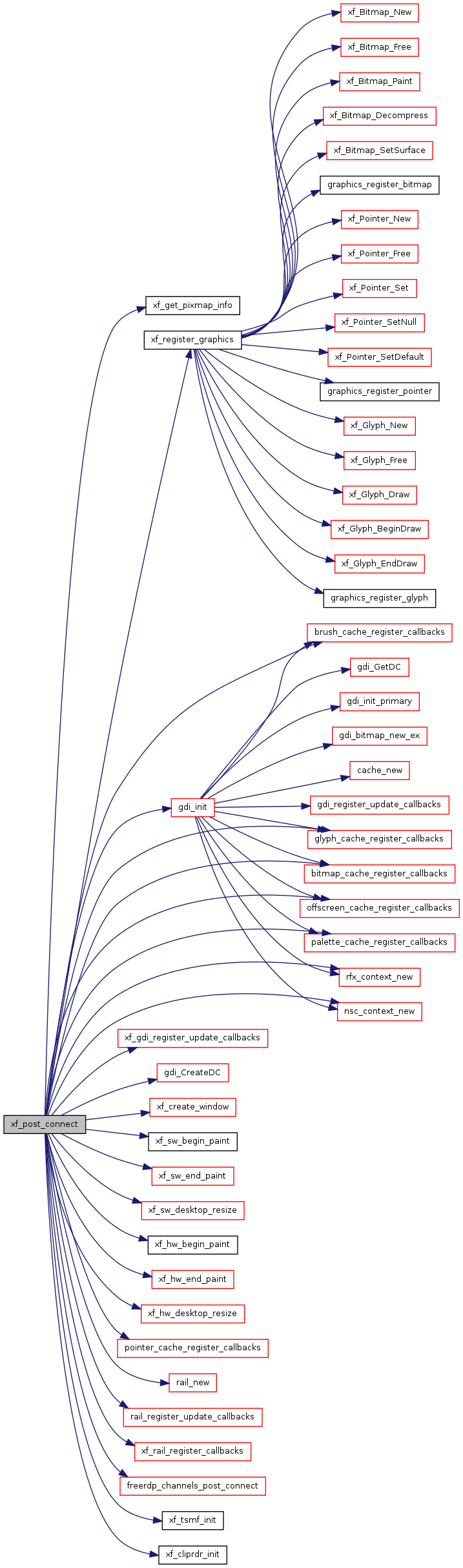

Here is the call graph for this function:

Here is the caller graph for this function:

void xf_toggle_control

(

xfContext *

xfc

)

Here is the caller graph for this function:

void xf_toggle_fullscreen

(

xfContext *

xfc

)

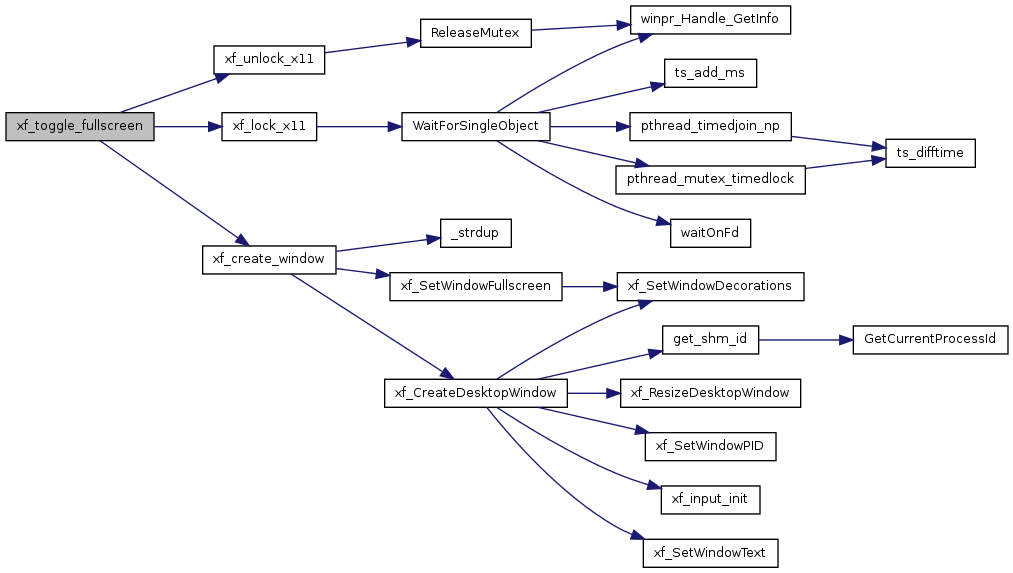

Here is the call graph for this function:

Here is the caller graph for this function:

void xf_transform_window

(

xfContext *

xfc

)

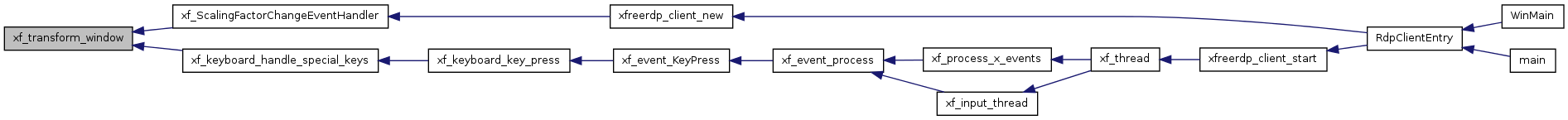

Here is the caller graph for this function:

void xf_unlock_x11	(	xfContext *	xfc,
		BOOL	display
	)

Here is the call graph for this function:

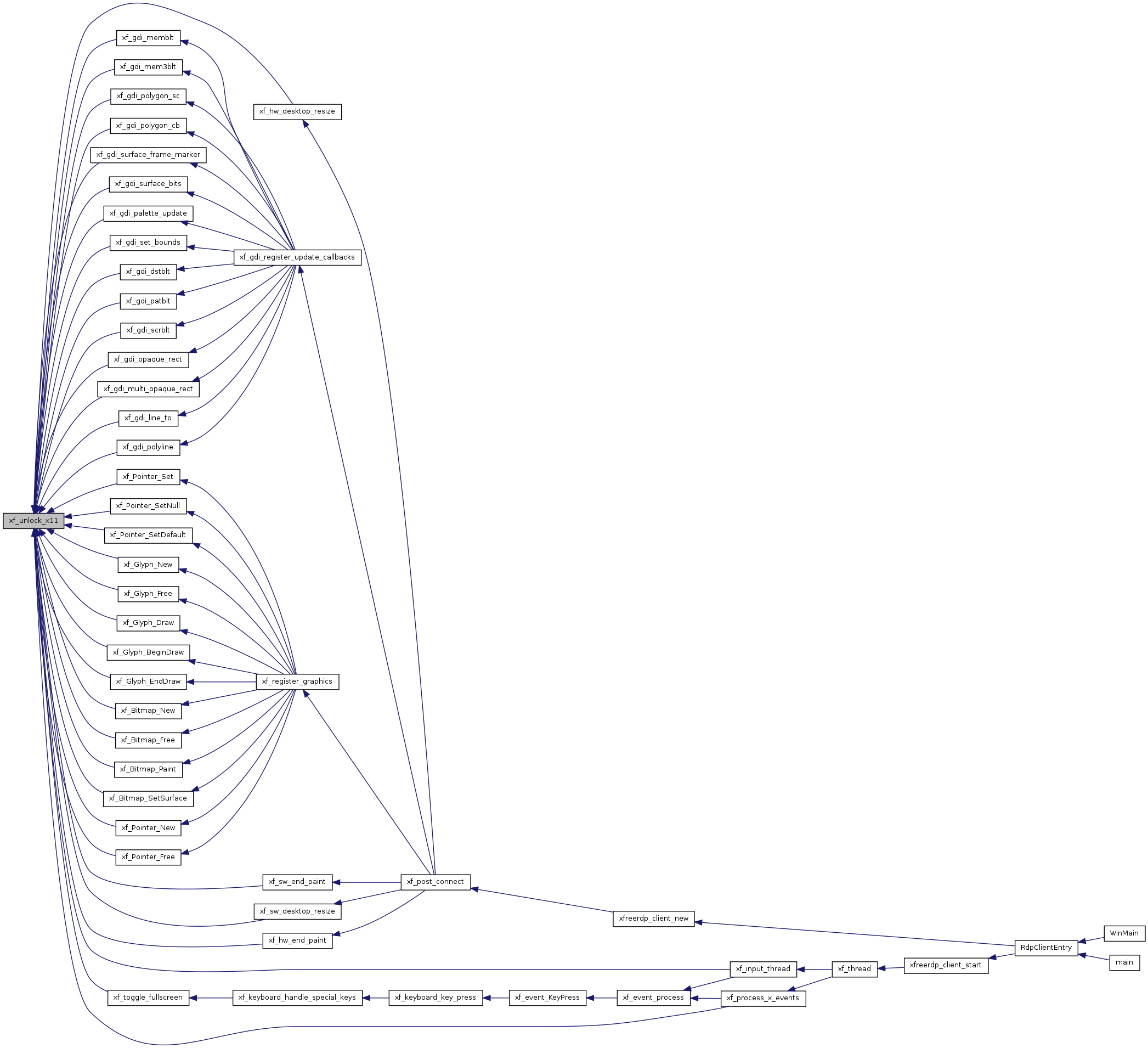

Here is the caller graph for this function:
